Quick Install G2230VAC

Item no.: 12050000-m

EAN:

	Choose environment

	Choose colour

	Choose shape

Amount

Buy

Copy EAN number

Product information
Download

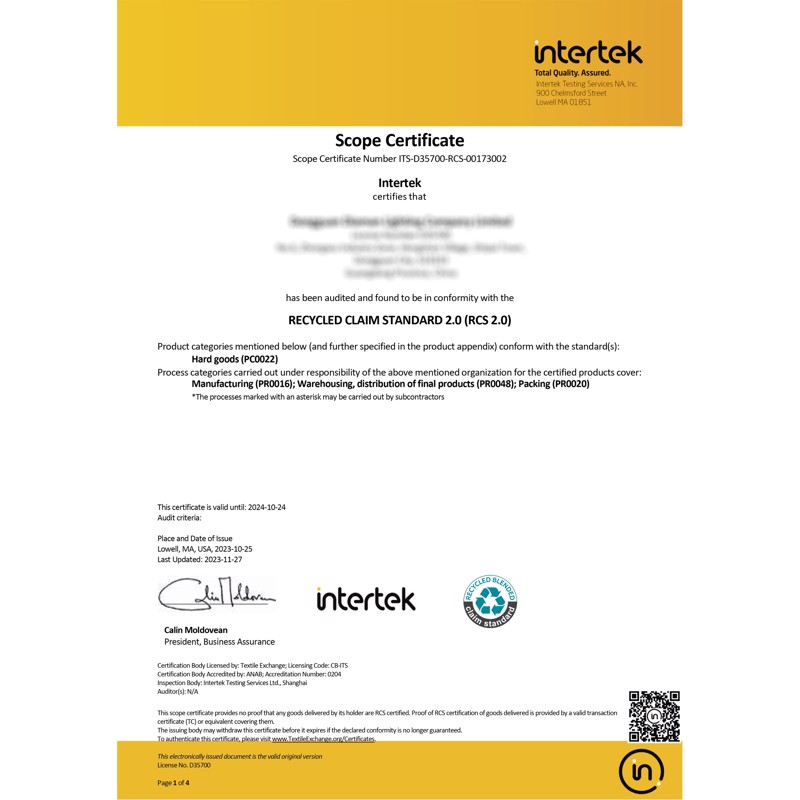

Produced from a minimum of 85% recycled materials
Approved for installation directly in the insulation and
flammable materials
Low mounting depth – 63 mm
Quick and easy mounting with screws

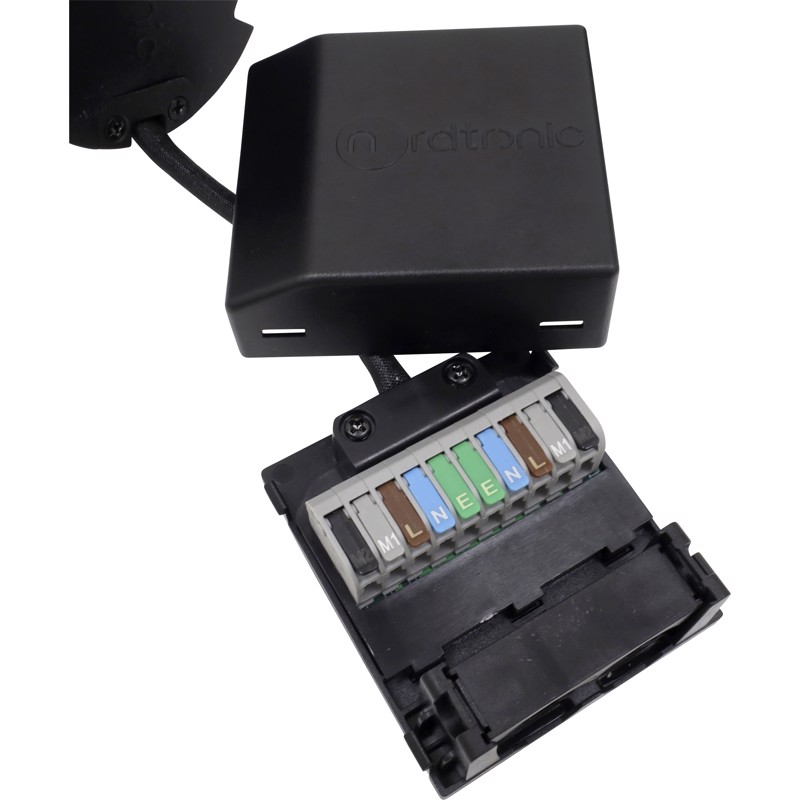

5-pole levers in the connector box
Possibility of mounting with cable or 16 mm flex tube
Adjustable screws for ceiling thickness up to 55 mm

Technical data for Quick Install G2

Voltage	220-240 VAC 50/60 Hz
System effect	Max. 7.5W LED

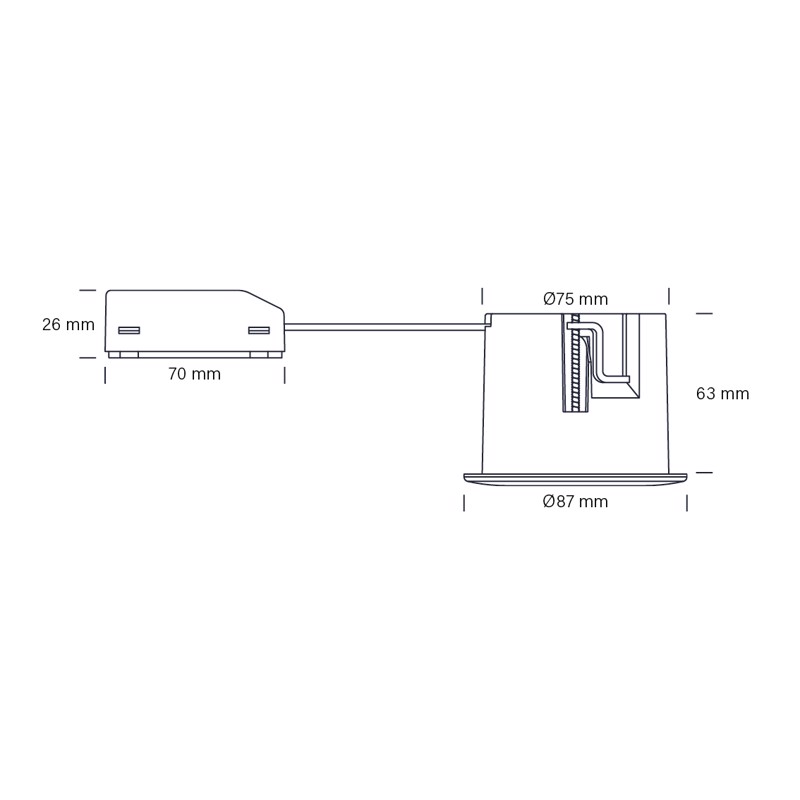

Cut out dimension	Ø75 mm
Installation height	63 mm
Exterior dimensions	Ø83 mm
Dimension connector box	L: 70 mm, W: 62 mm, H: 26 mm
Tilt angle	30°
Possibility of through wiring	Yes, 2 x 5G1.5 mm²
Operating temperature	-20° - +45°
IP rating	IP44 (depends on the light source)
Insulation class	Class II
Material	Aluminium, plastic
Environment	Indoor and outdoor
Warranty	10 years
Approvals	CE
