Perla excl. light source230VAC

Item no.: 1225-m

EAN:

	Choose colour

Amount

Buy

Copy EAN number

Product information
Download

Approved for installation directly in the insulation and flammable materials
30° tilt in all four directions
Quick and easy mounting
Mounting with springs
Screwless terminal block in the connector box
Possibility of mounting with cable or 16 mm flex tube
Adjustable springs for ceiling thickness up to 24 mm

Technical data for Perla excl. light source

Voltage	220-240VAC 50 Hz
Light source	Max. 7.5W LED

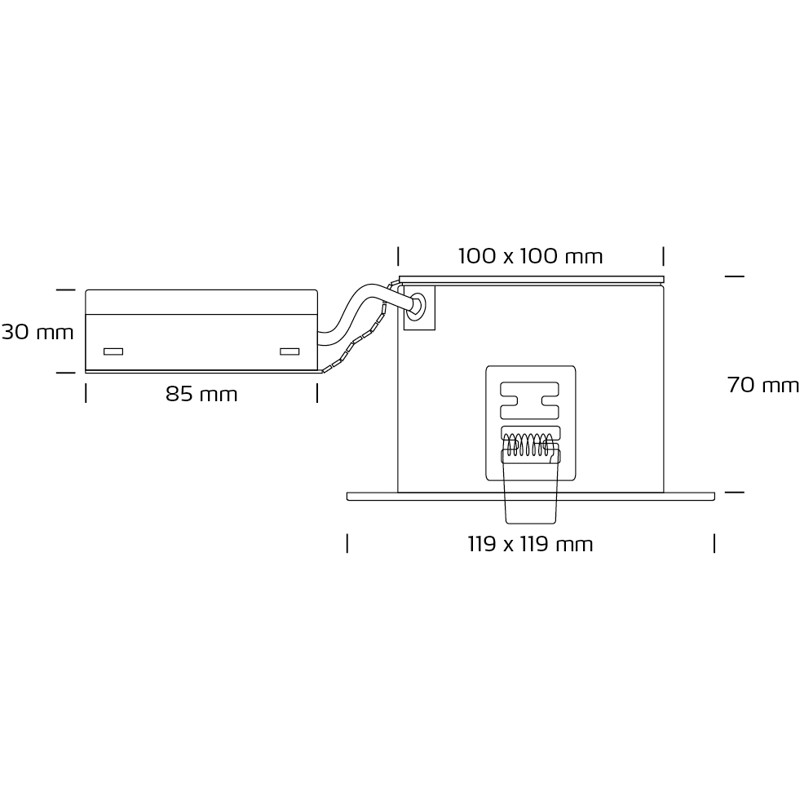

Carving dimensions	100 x 100 mm
Installation height	70 mm
Exterior dimensions	119 x 119 mm
Dimensions connector box	L: 85 mm, W: 55 mm, H: 30 mm
Tilt angle	30°
Possibility of through wiring	Yes, 5G1.5
IP-class	IP44 (depends on the light source)
Insulation class	Class II
Material	Aluminium, plastic
Environment	Indoors
Warranty	5 years
Approvals	CE
