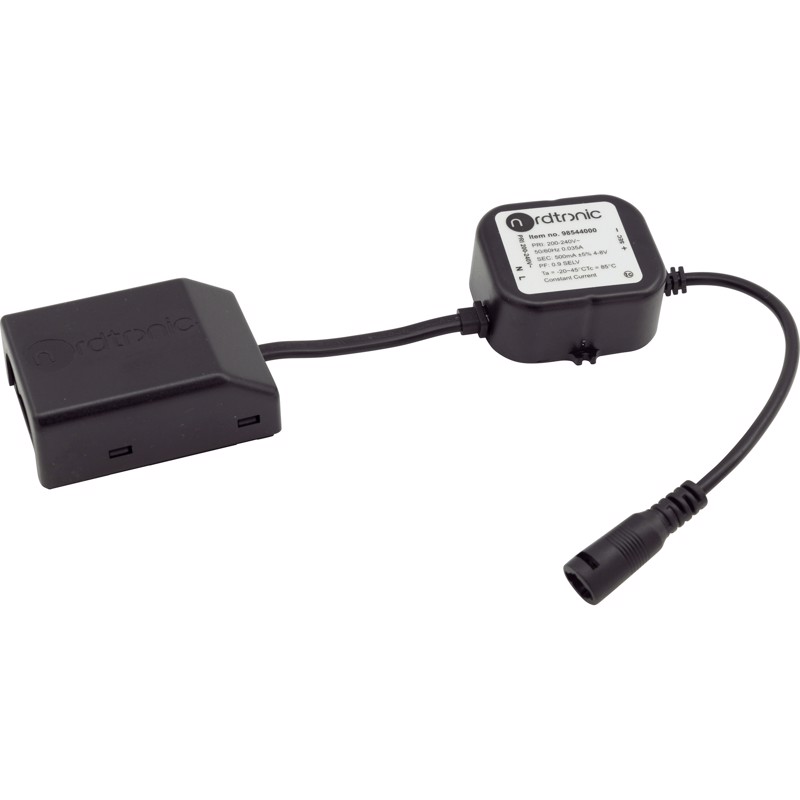

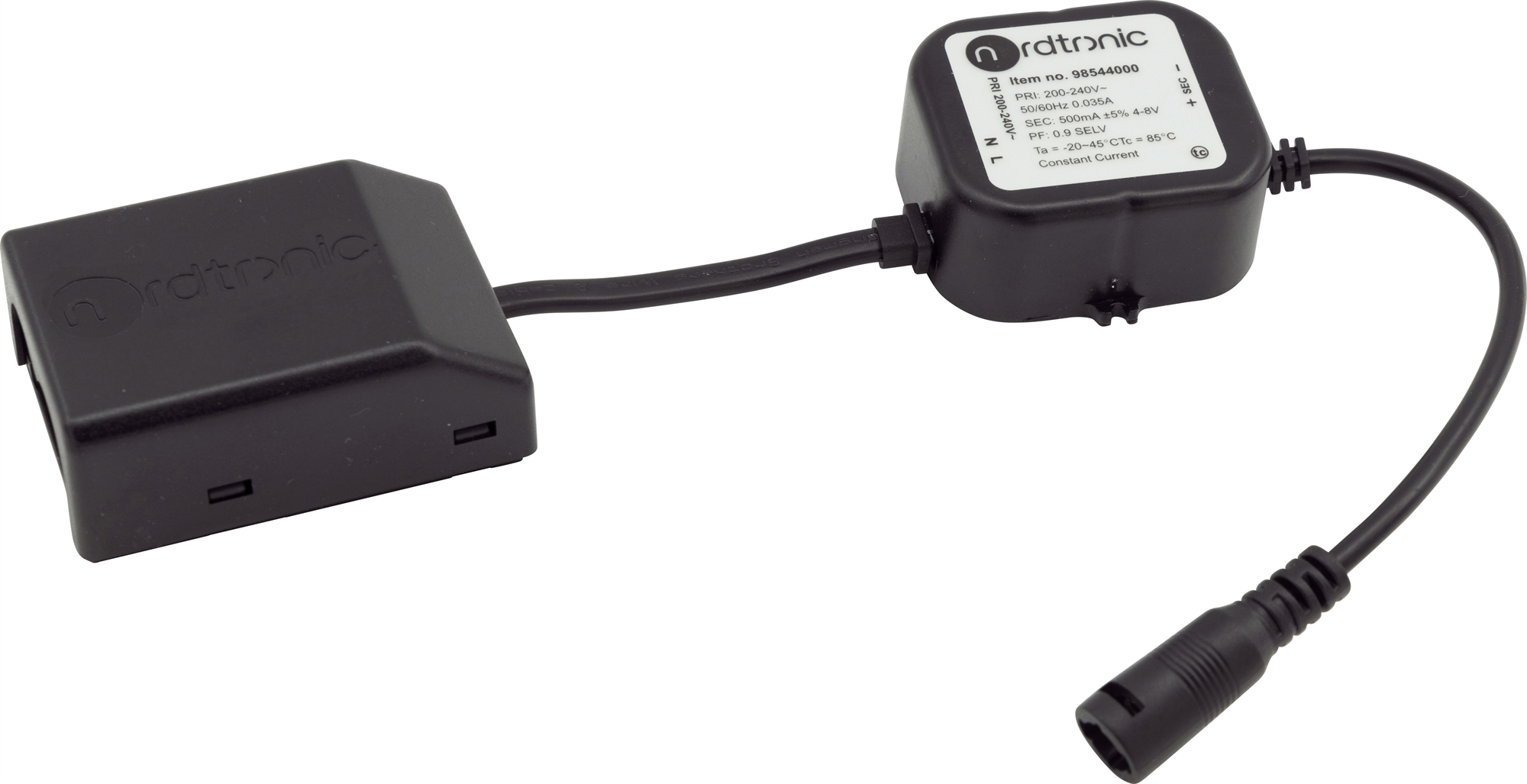

Low Profile Flexible G2 driver, 4W200-240VAC - 500mA - 4W

Item no.: 98544000

EAN: 5704629004344

Amount

Buy

Copy EAN number 5704629004344

Product information
Download

Approved for installation directly in the insulation and flammable materials
For indoor and outdoor use
Dimmable - trailing edge
Built-in thermofuse with auto reset
Quick and easy installation
Can be fastened by screws
3-pole leavers in the connector box
Approved for through wiring – 2 x 3G1.5 mm2
Possibility of mounting with cable or 16 mm flex tube
7 years warranty
Do NOT plug in any LED lamps, when connected to power

Product Information Sheet

Technical data for Low Profile Flexible G2 driver, 4W

Primary voltage	200-240VAC 50/60 Hz
Min. load	2W
Max. load	4W
Output current	4-8 Vdc (depending on load)
Output voltage	500mA (Cc)
Expected lifespan	50,000 hours
Dimmable	Yes, trailing edge

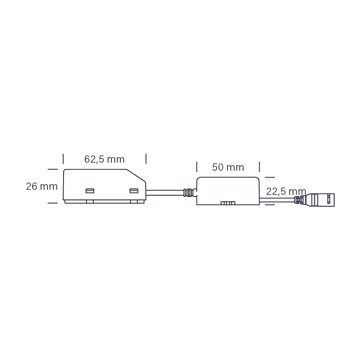

Dimensions driver	L: 50 mm, W: 50.2 mm, H: 22.5 mm
Dimensions connector box	L: 62.5 mm, W: 44 mm, , H: 26 mm
Possibility of through wiring	Yes, 2 x 3G1,5 mm²
Operating temperature	-20° - +45°
IP-class	IP21
Insulation class	Class II
Material	Plastic
Environment	Indoor and outdoor
Warranty	7 years
Approvals	CE, RoHS
