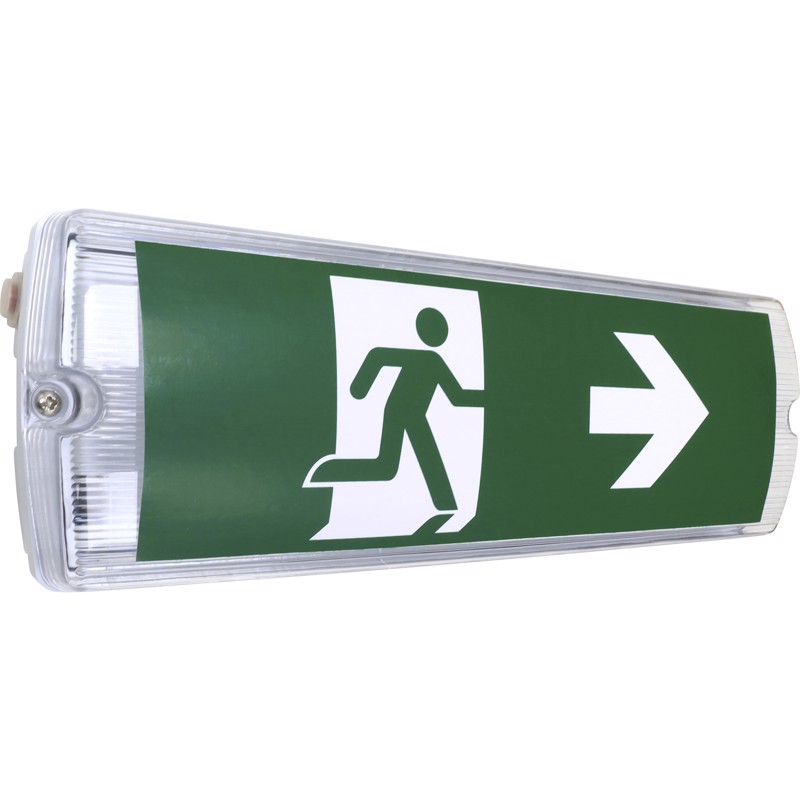

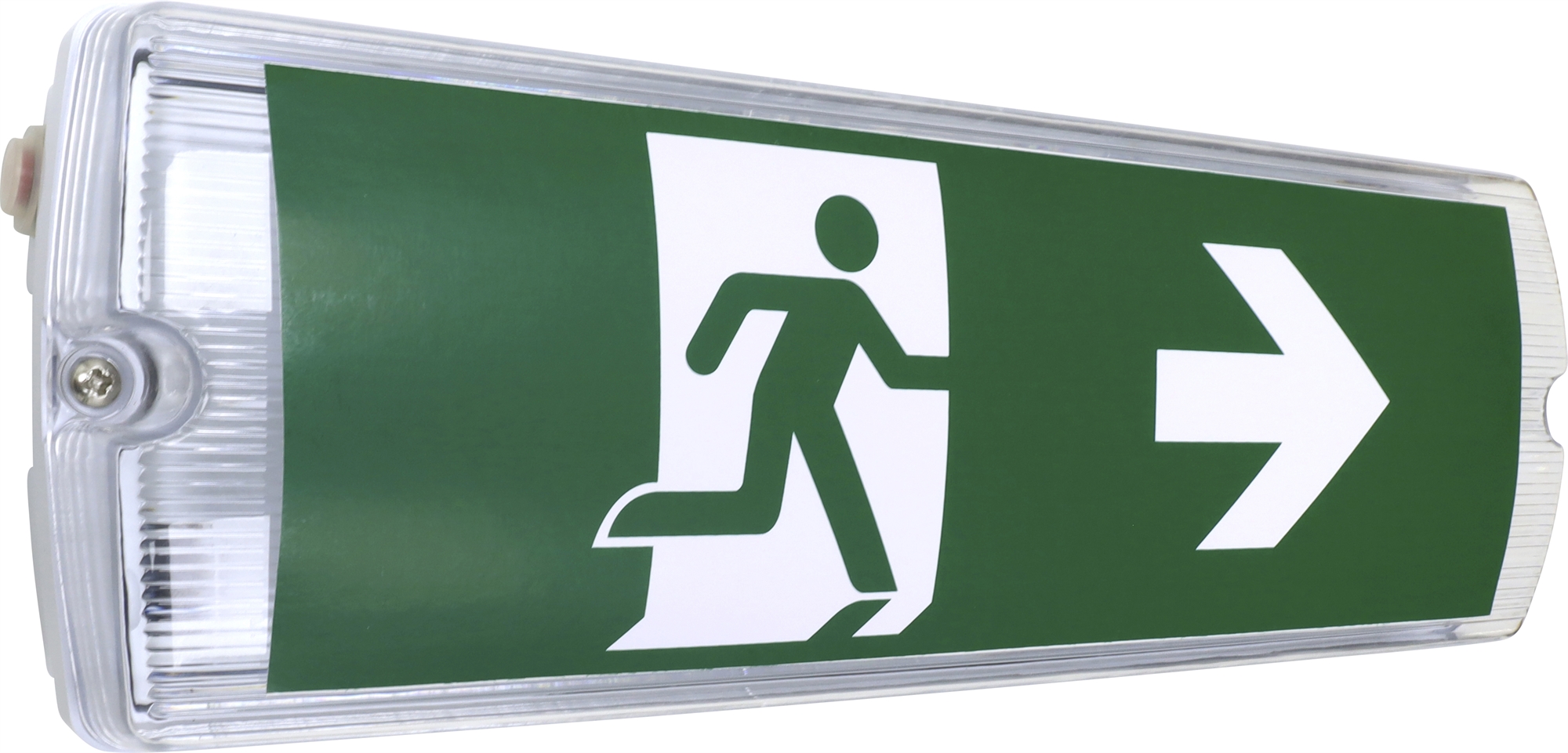

ECOtech Emergency Bulkhead230VAC - 6.5W - 6000K

Item no.: 97161116

EAN: 5704629006676

Amount

Buy

Copy EAN number 5704629006676

Product information
Download

Can be mounted on both wall and ceiling
In case of power failure, the built-in battery pack provides approx. 3 hours of emergency operation
Reading distance: Max. 24 m
Four different pictograms are included
Test the lighting and the battery periodically
It is recommended to replace the battery every 4 years
Conform to BS EN 605598-2-22

Product Information Sheet

Manual

Technical data for ECOtech Emergency Bulkhead

Voltage	220-240VAC 50/60 Hz
System effect	6.5W
Light source	LED
Colour temperature	6000 Kelvin
Light intensity	400 Lumen (AC) 340 Lumen (Battery)
Colour rendering	CRI>80
Beam angle	120°

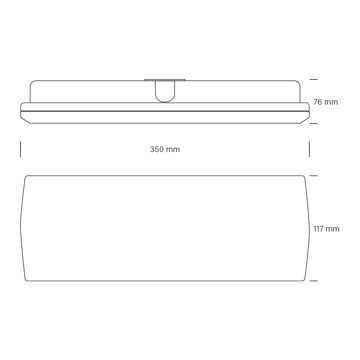

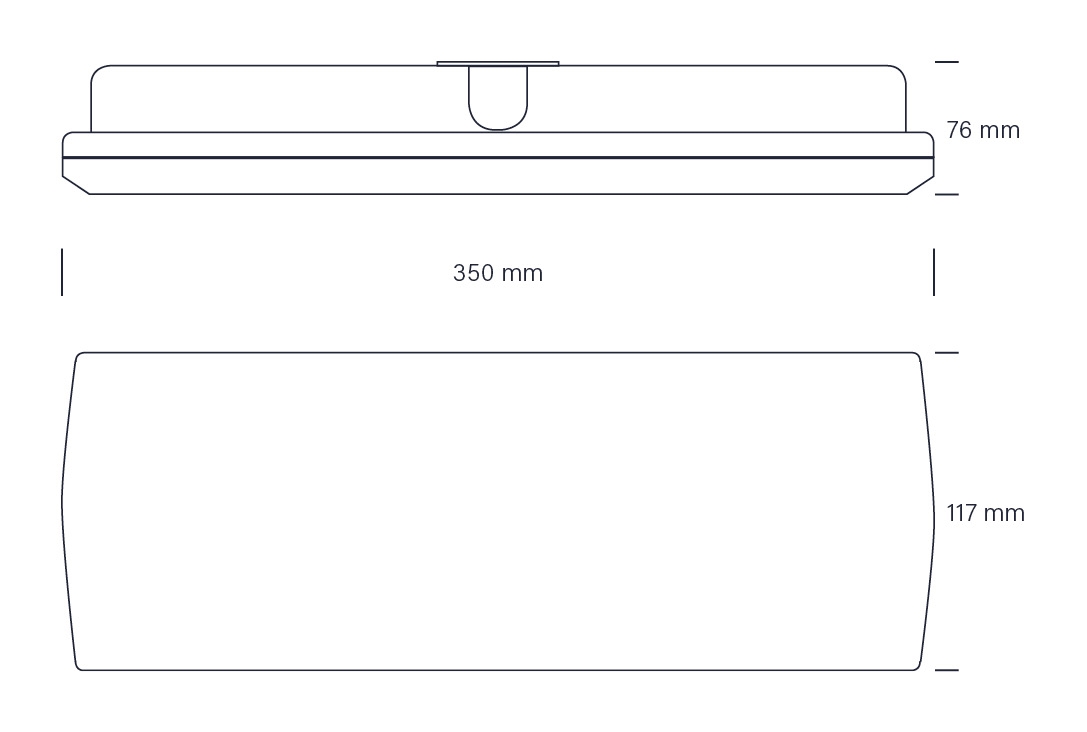

Exterior dimensions	L: 353 mm, W: 118 mm, H: 80 mm
Operating temperature	0° - +55°
Reading distance	Max. 24 m
Battery	3.2V 4000mAh LiFeP04
Auto test	Yes
Manual test button	Yes
IP-class	IP65
Insulation class	Class II
Material	Polycarbonate
Environment	Indoors and outdoors
Warranty	2 years
Approvals	CE
