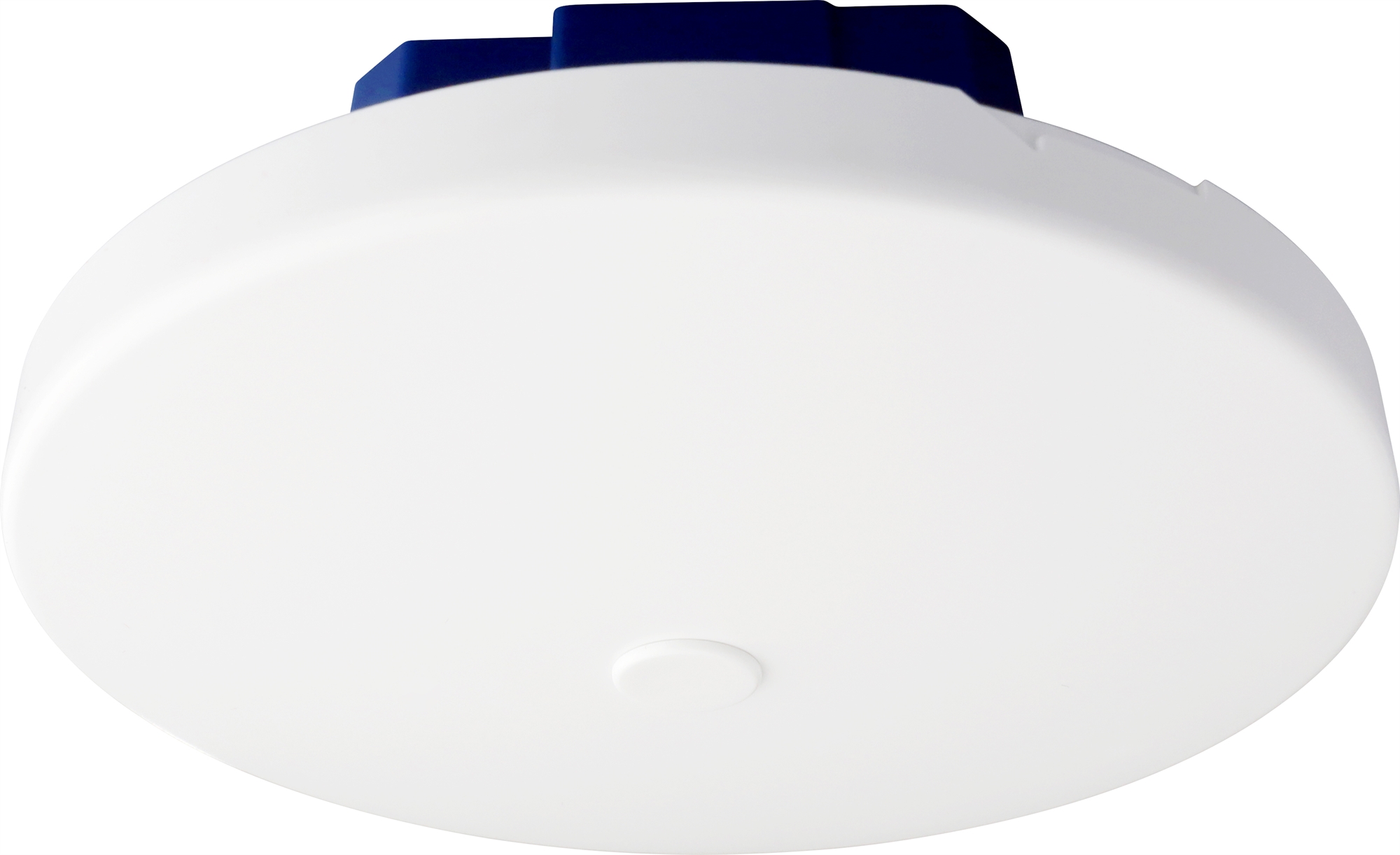

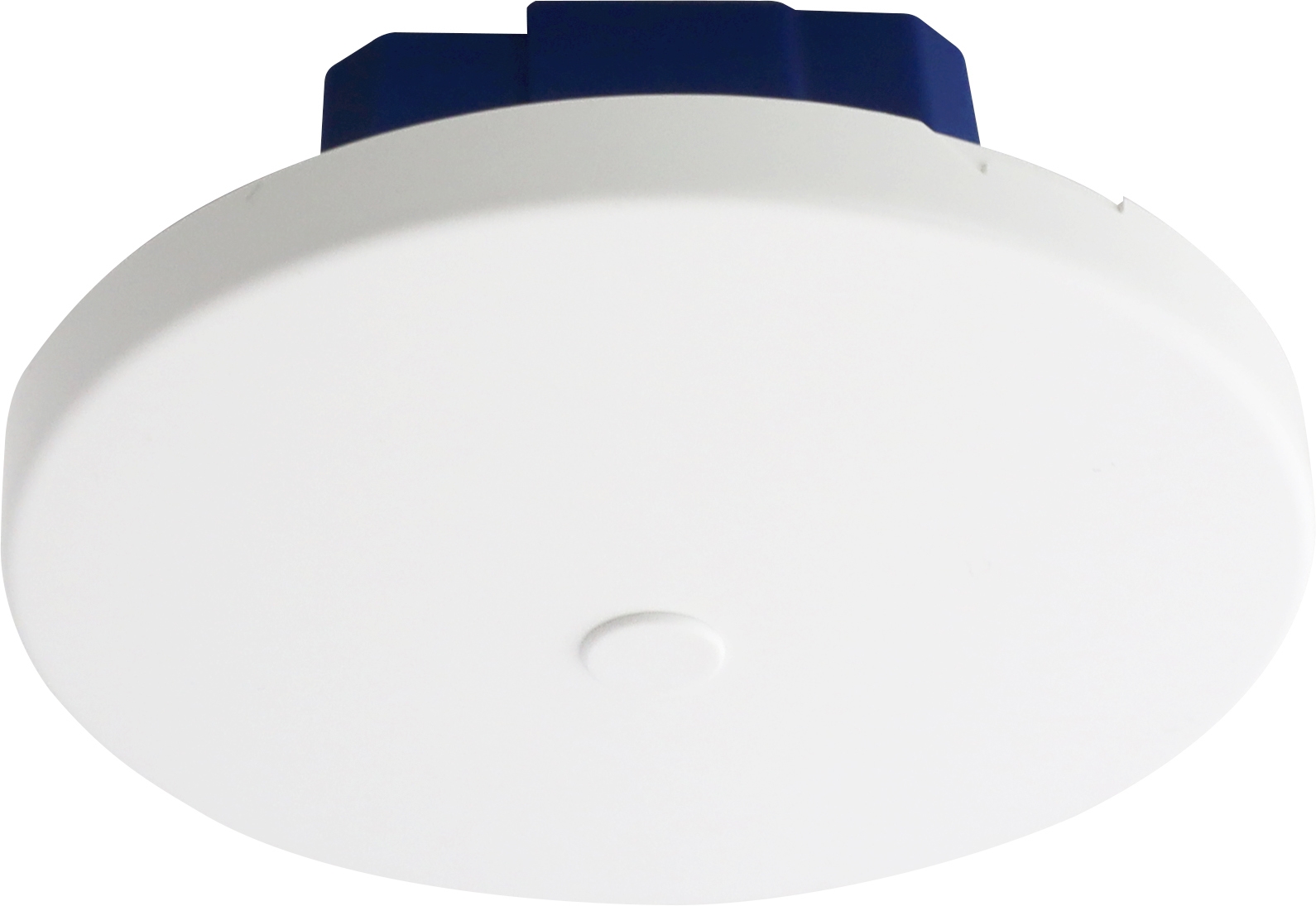

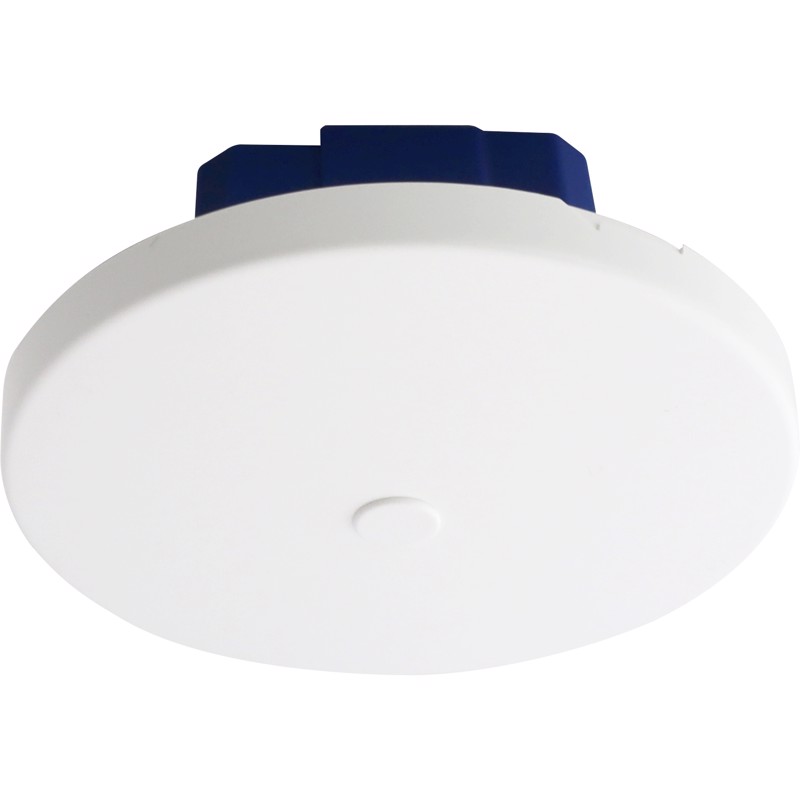

Ceiling outlet Dimmer ZigbeeCeiling outlet with Zigbee dimmer

Item no.: 98425033

EAN: 5704629006065

Amount

Buy

Copy EAN number 5704629006065

Product information
Download

Zigbee trailing edge dimmer (based on latest Zigbee 3.0 protocol)
Talks with Homey

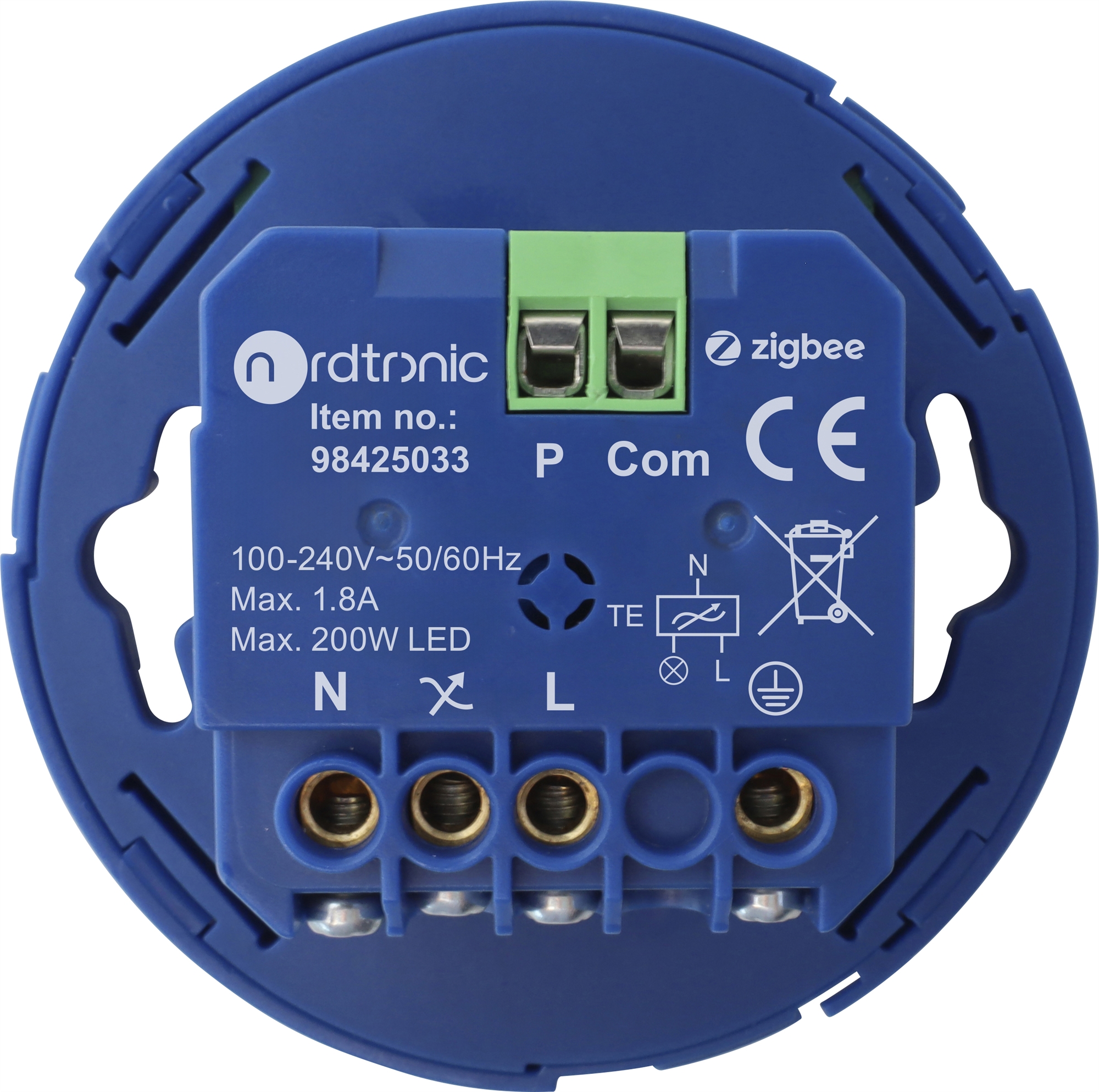

Dimmer output terminals on front and back
Trailing edge dimmer: 5-200W LED
Minimum dimming level and startup brightness setting function

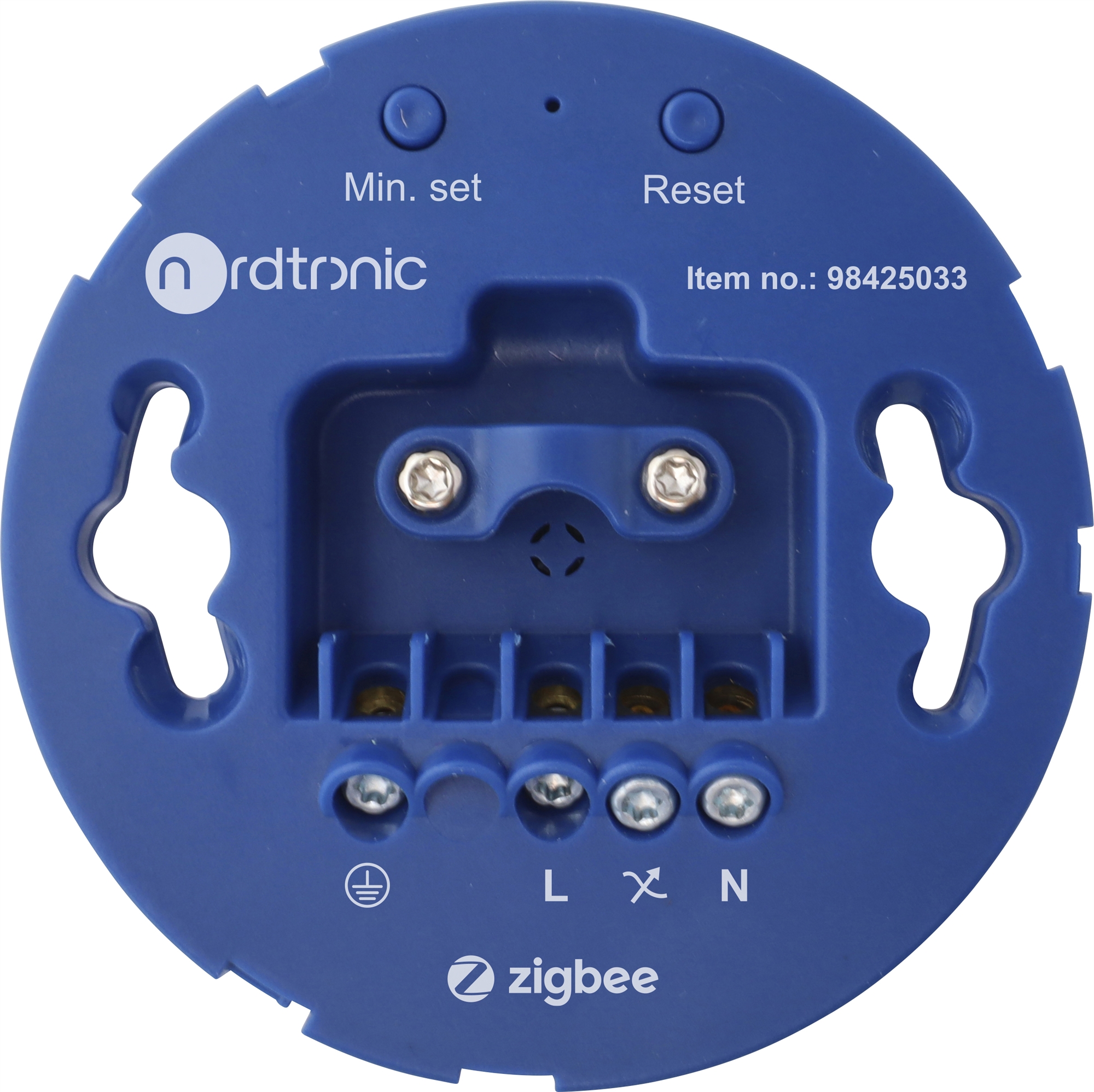

Input and output with screw terminals
Can be controlled by universal 230V input single wire push switch
Memory function for dimming
Fits in an European standard wall box
Compatible with universal Zigbee gateways
Power metering via Homey

Product Information Sheet

Manual

Technical data for Ceiling outlet Dimmer Zigbee

Voltage	100-240Vac 50/60 Hz
Max. dimmer load	200W LED
Dimming	Trailing edge
Switch input	230Vac

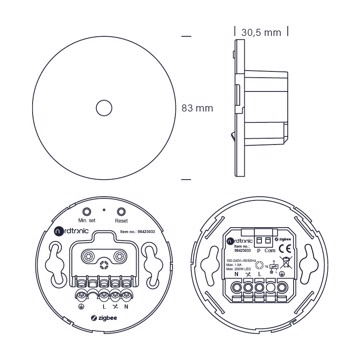

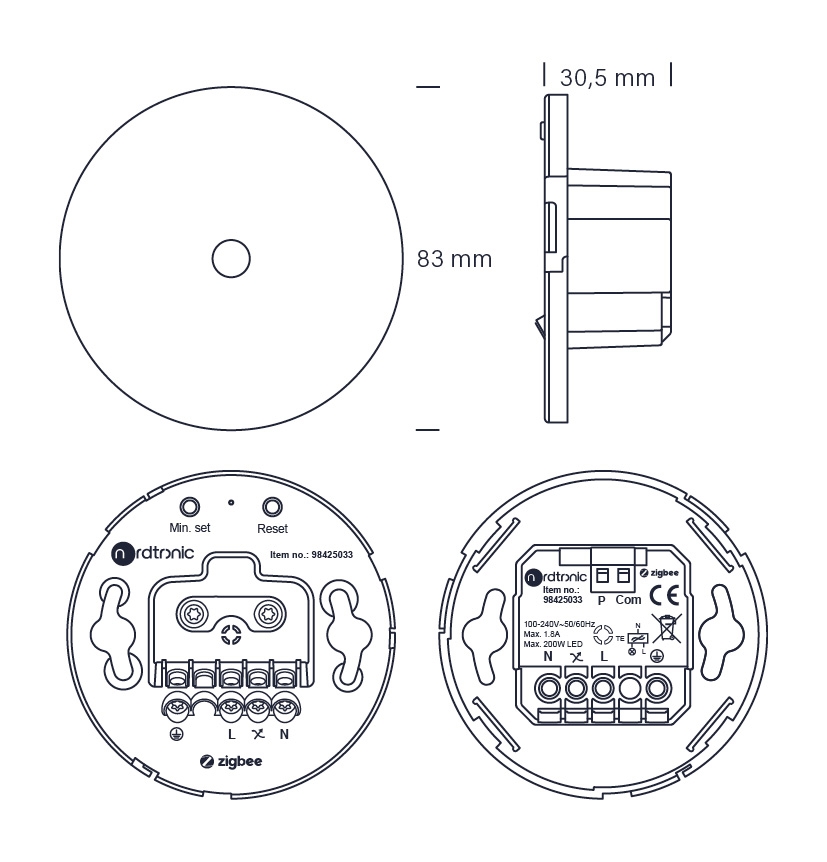

Exterior dimensions	Ø83 mm, H: 30.5 mm
Possibility of through wiring – number of Torx terminals on the back	Yes, max. 4 × 1.5 mm² / 3 × 2.5 mm² conductors
Possibility of through wiring – number of push terminals	Yes, 3 × 0.75 mm² / 2 × 1.5 mm² conductors
Possibility of through wiring – number of Torx terminals on the front	Yes, max. 2 × 0.75 mm² / 1 × 1.5 mm² conductor
Cable load	max. 5 kg
IP rating	IP20
Material	Aluminium, plastic
Environment	Indoors
Warranty	5 years
Approvals	CE
