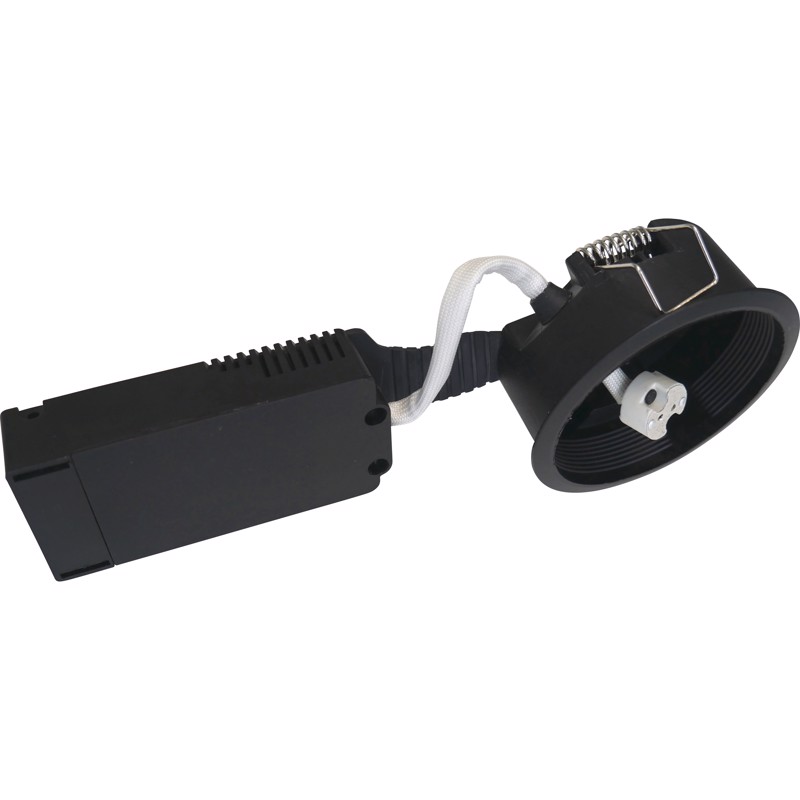

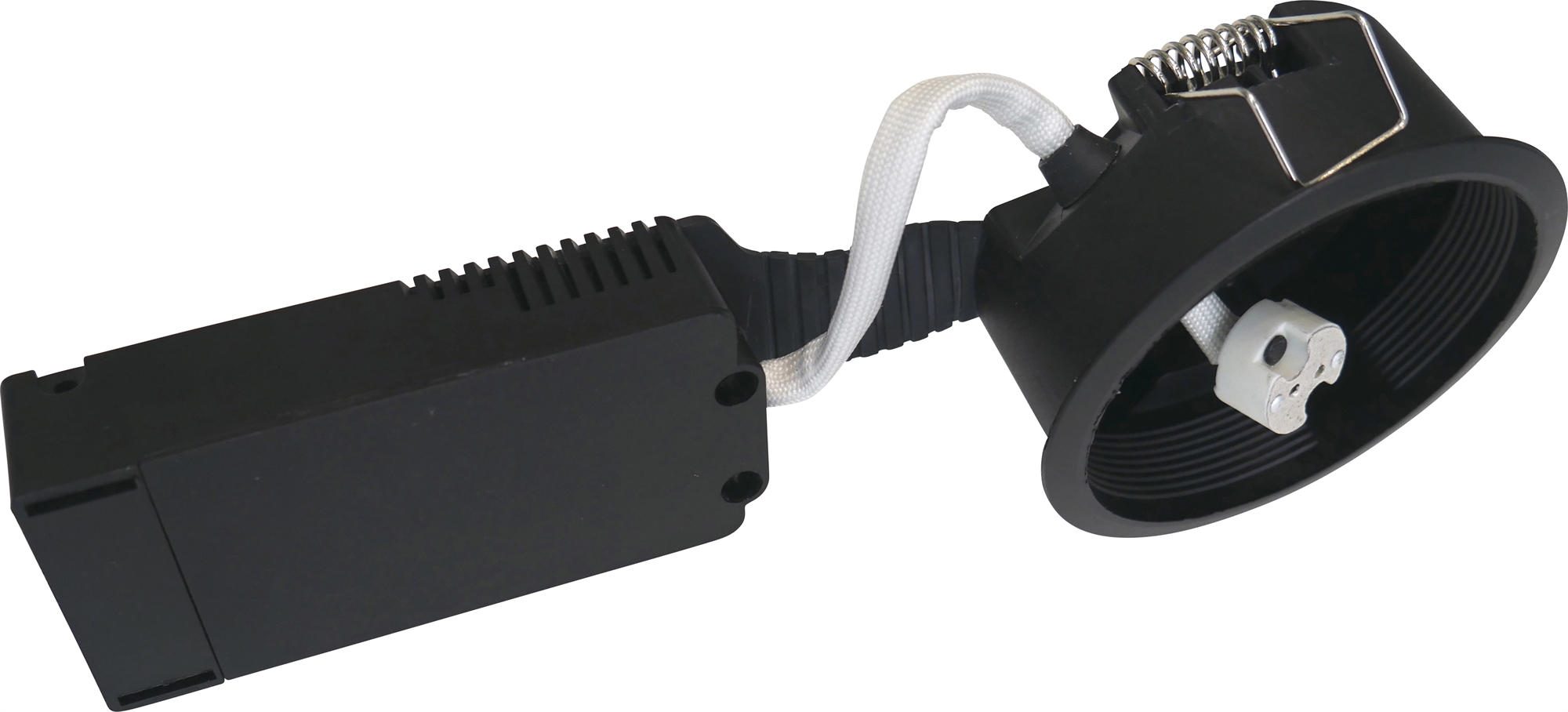

Back cover and driver for Low Profile 6W220-240VAC - 350mA

Item no.: 1700

EAN: 5704629017009

Amount

Buy

Copy EAN number 5704629017009

Product information
Download

May only be used with Nordtronic light source
Low mounting depth
Quick and easy mounting
Mounting with springs
Screwless terminal block in the connector box
Possibility of mounting with cable or 16 mm flex tube

Product Information Sheet

Technical data for Back cover and driver for Low Profile 6W

Voltage	220-240 VAC 50 Hz
Secondary amperage	350mA
Min. load	3.5W
Max. load	4.9W
Socket	G4
Dimmable	Yes, trailing edge

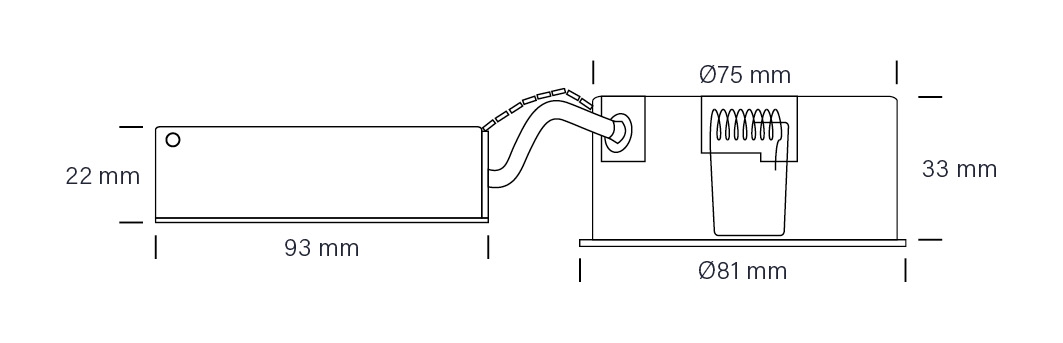

Cut out dimension	Ø75 mm
Installation height	33 mm
Exterior dimensions	Ø81 mm
Dimensions driver	L: 93 mm, W: 45 mm, H: 22 mm
Possibility of through wiring	Yes, 2 x 3G1.5 mm² - 30 pcs.
IP rating	IP20
Insulation class	Class II / SELV
Fuse	Built-in thermal fuse with auto reset
Material	Plastic
Environment	Indoors and outdoors
Warranty	2 years
Approvals	CE
