Alina G2350mA - 3.2W - 2700K / 3000K CCT switch

Item no.: 3009885-m

EAN:

	Choose colour

Amount

Buy

Copy EAN number

Product information
Download

Approved for installation directly in the insulation and flammable materials
Low mounting depth
Connector on the lamp housing
Dimmable with Nordtronic LED driver

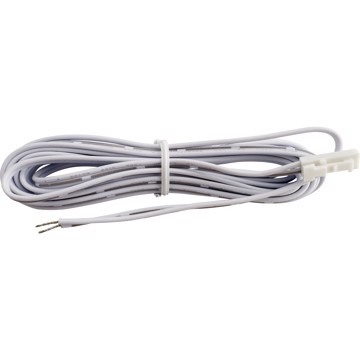

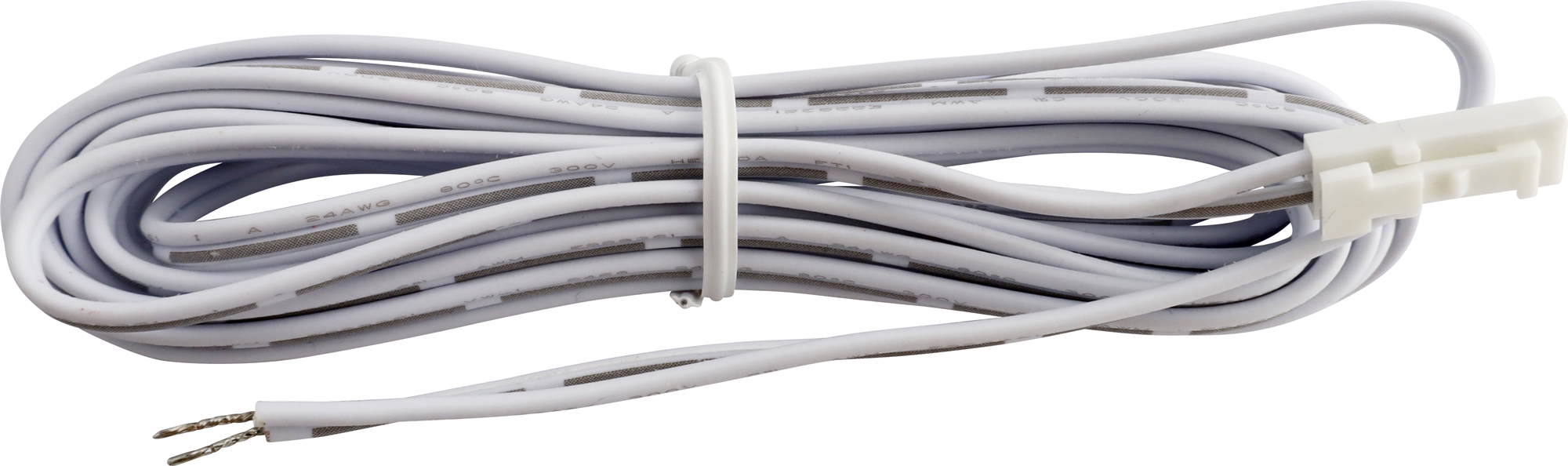

Incl. 3 meter cable with plug in both ends

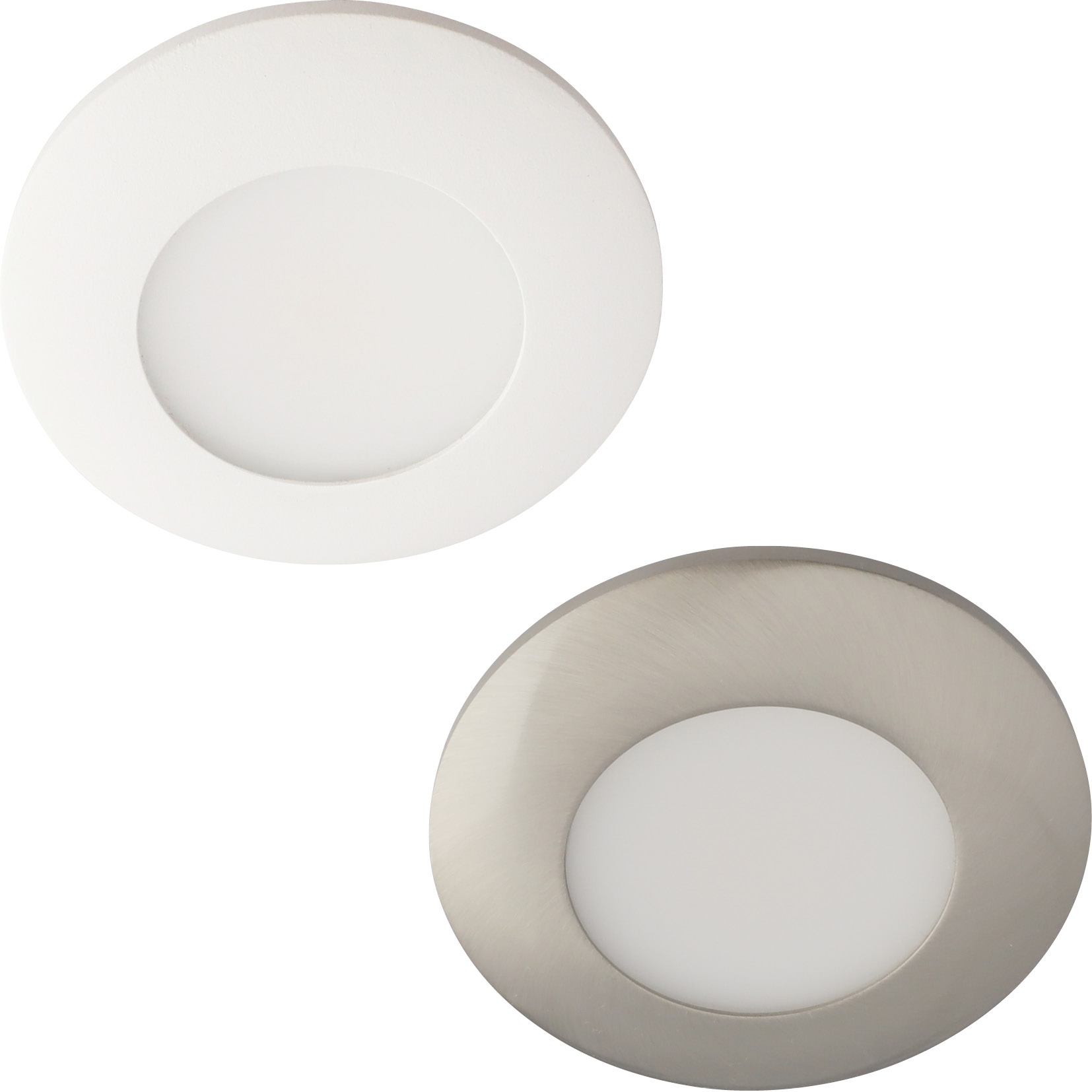

Alina G2 is a compact cabinet light designed with easy and flexible installation in mind.

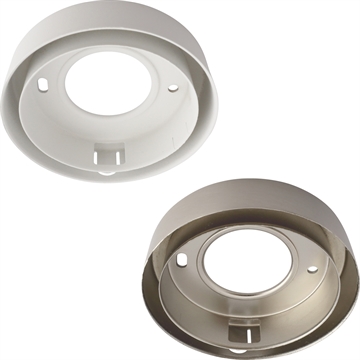

With an installation height of only 11 mm, it is ideal for installation beneath kitchen wall cabinets or in bathroom mirror canopies. Alternatively, the optional surface mounted rings, item no. 3009887 or 3009888, can be used.
The spotlight is also approved for direct installation in insulation and flammable materials.
The integrated CCT switch allows the colour temperature to be selected between 2700K and 3000K, making it easy to adapt the lighting to the customer’s requirements directly on site.

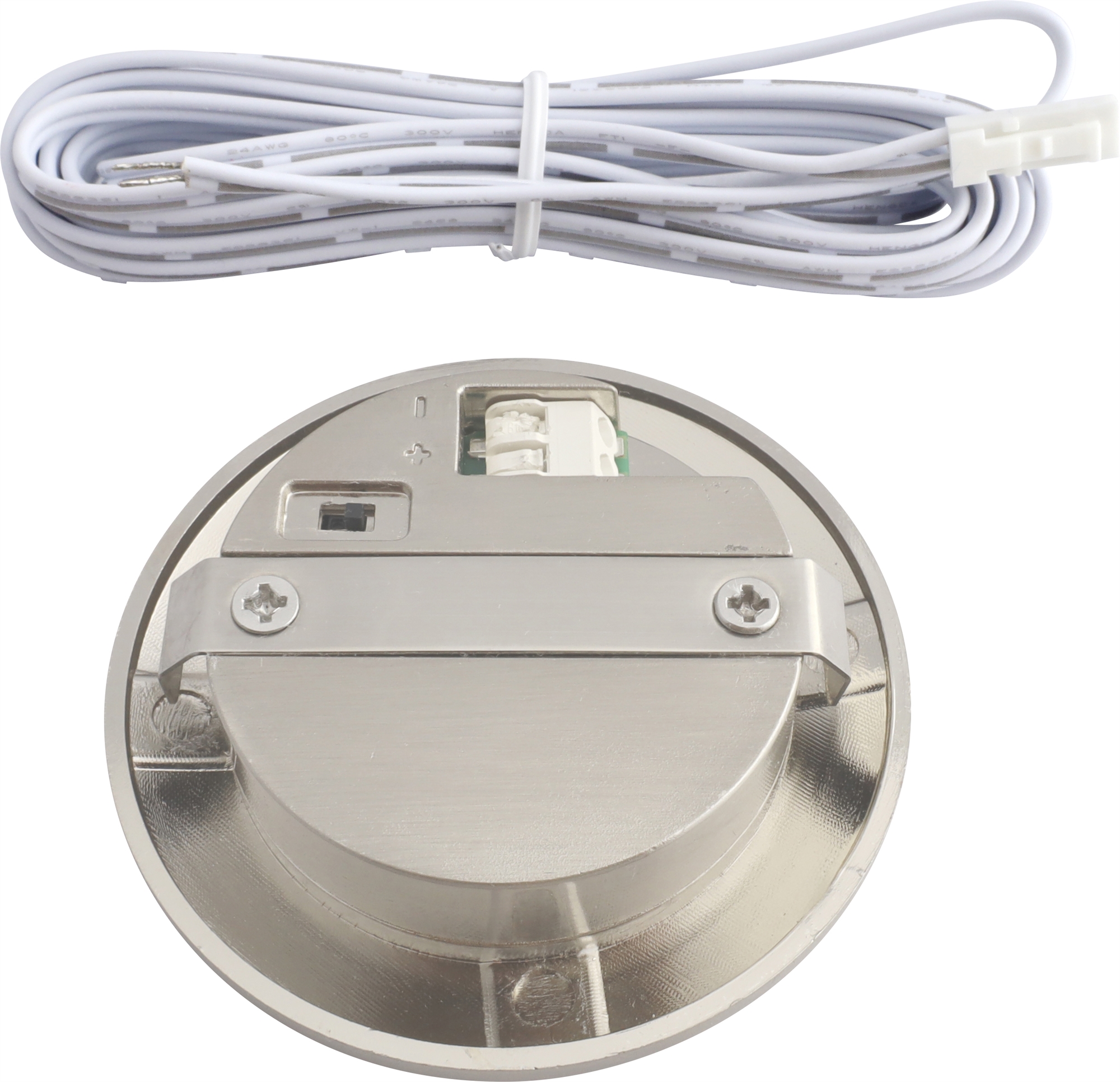

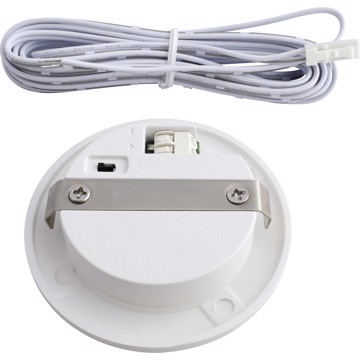

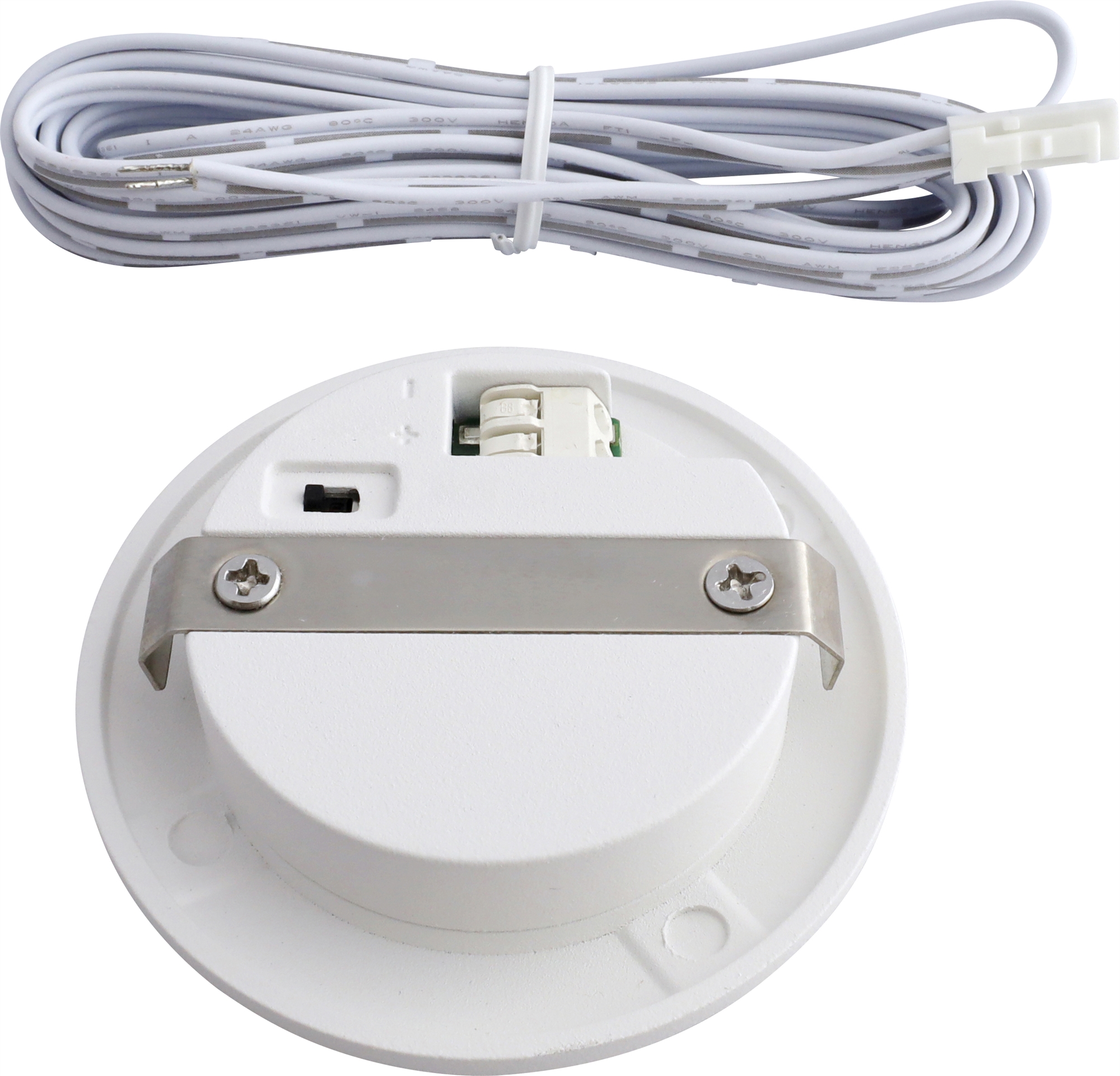

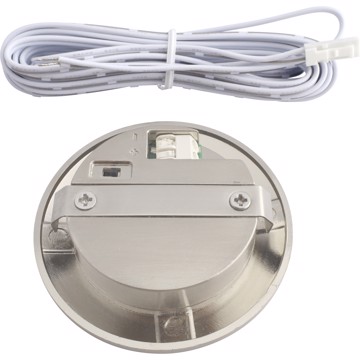

The terminals on the luminaire housing allow existing installations to be used. Alternatively, the supplied 3 m cable with connector can be used for quick and straightforward connection.
Alina G2 is dimmable when used with Nordtronic’s dimmable LED drivers, item no. 98544016 or 98544026.
A reliable and installer friendly solution that saves you time!

Product Information Sheet

Manual

Dialux files

Technical data for Alina G2

Amperage	350mA
System effect	3.2W
Light source	LED, EPREL ID 2611580
Colour temperature	2700 / 3000 Kelvin CCT switch
Light intensity	290 / 300 Lumen
Colour rendering	CRI>90
Expected lifespan	50,000 hours
Dimmable	Depends on driver
Flicker free	Yes, according to the new Ecodesign / ErP directive
SVM <0,4	Yes
PstLM <1	Yes
SDCM	<3
Beam angle	100°

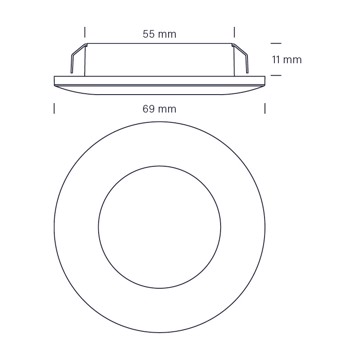

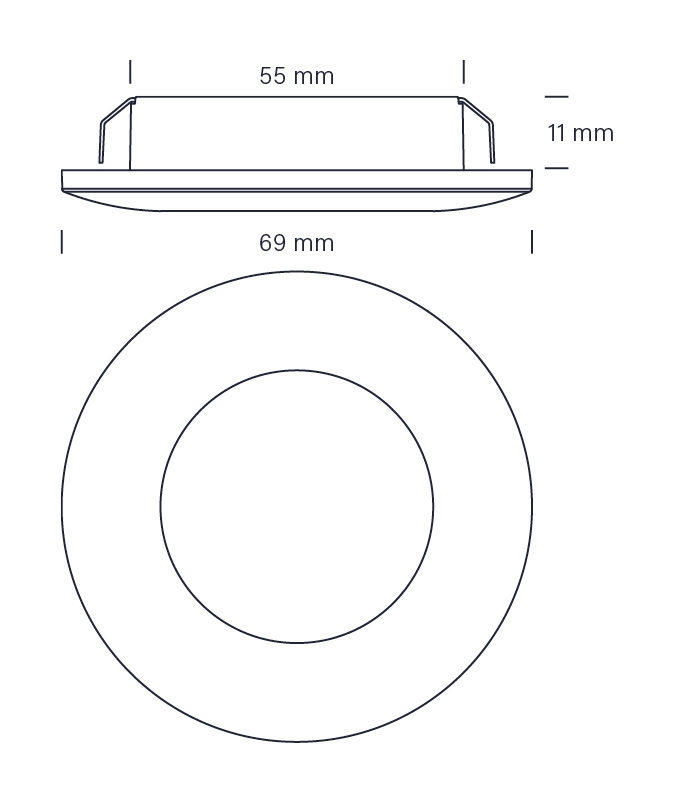

Carving dimensions	Ø55 mm
Installation height	11 mm
Exterior dimensions	Ø69 mm, H: 17 mm
Spring terminal	0.5 - 0.75 mm²
IP rating, front / back	IP44 / IP20
Insulation class	Class III
Material	Aluminium, plastic
Environment	Indoors
Warranty	5 years
Approvals	CE, RoHS
